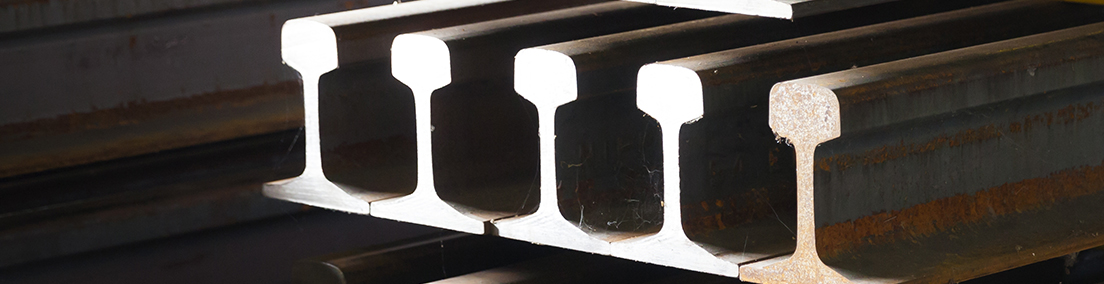

JIS/UIC/BS Standard
| Section |
1 |
2 |
3 |
4 |
5 |
| Available Type JIS E 1101 |
22 KG |
|
|
|
|
| 30 KG |
|
|
|
|
| 37 KG |
115 RE |
BS 75R |
UIC 60KG |
IRS 52KG |
| 40 KG |
132 RE |
BS 90R |
UIC 54KG |
U 33 |
| 50 KG |
|
|
|
|
| 60 KG |
|
|
|
|
| 70S |
|
|
|
|
Elevator/Light Rails
| Car Parking SystemGuide Rail |
Finished ElevatorGuide Rail |
Light Rail |
| 8 KG |
8 KG |
9 KG |
| 13 KG |
13 KG |
12 KG |
| 18 KG |
18 KG |
15 KG |
| 24 KG |
24 KG |
22 KG |
|
30 KG |
30 KG |
| for Elevator and Car Parking System |
for Mining, Plant |
| and Timber Yard |
Rail Accessories
- Fish Plate for Rails : JIS E 1102-92
9K, 12K, 15K, 22K, 30K, 50K, 60K
- Fish Bolt and Nuts : JIS E 1107
Square, Round, Hexagonal Type, Coated, Oiled,
- Spike Screw for Rails : JIS E1109/BS864-1,
0.55kg/0.59kg, Square, Hexagonal
- Rail Spikes : JIS E 1108
Diameter : 8/10/12/12/16mm
Length : 60/65/90/15mm
- Spring Washers for Fish Plate
No 1 - for 30, 37, 40, 50kg rails
No 2 - for 50kg rails
No 3 - for 60 kg rails
